FAI, Cpk & Batch Reporting

Inspection results in. Customer-ready FAI, Cpk and batch reports out.

PAS Report imports CMM and scanner results, matches them to balloons and fills your customer's report template automatically: AS9102 FAI forms in the formats of Elbit, IAI, Rafael, Taas, Mabat, Malam and more.

Request a demo of PAS Report Watch the demo

6+: customer FAI formats built in
1-click: Cpk and batch statistics
100%: traceable to drawing balloons

The problem

Transferring results from a CMM printout into an FAI form is slow, error-prone and different for every customer.

The PAS way

One import, every report: dimensional report per part, FAI Forms 1-3 in the customer's format, Min/Max, SPC and Cpk per characteristic, batch (lot) reports and Certificate of Conformance, all generated automatically in Excel.

Capabilities

What PAS Report does

Automatic result import

CAMIO, PC-DMIS, DMIS, scanner and Equator results are parsed and matched to balloon numbers.

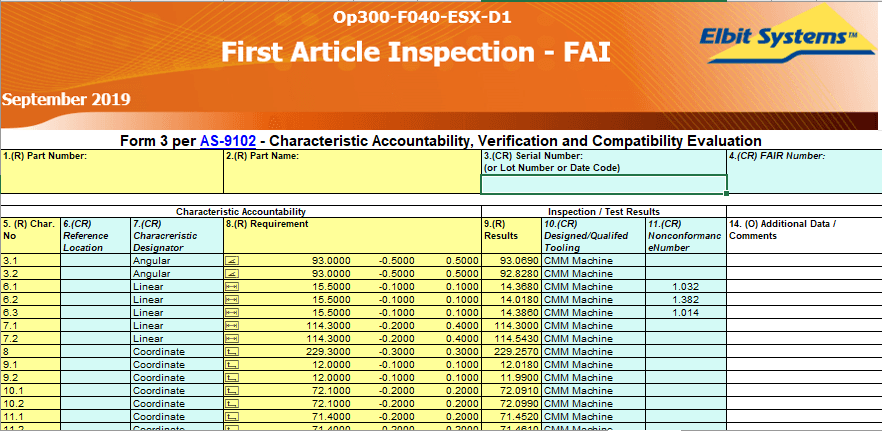

AS9102 FAI in customer formats

Ready templates for Elbit, IAI, Rafael, Taas, Mabat and Malam, or your own customer's layout.

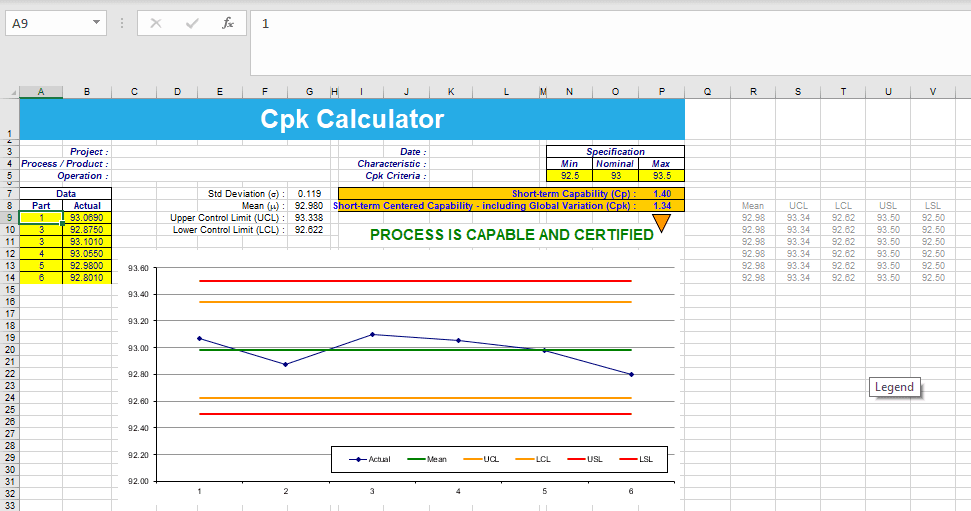

Cpk / SPC

Capability calculator with Cp, Cpk, UCL / LCL and trend chart for any characteristic.

Batch and Min/Max reports

Lot reports across many parts with min, max, mean and out-of-tolerance flags.

COC and dimensional reports

Certificate of Conformance and per-part dimensional report generated together.

Sequential parts

Add parts to a batch as they are measured; the report updates itself.

Workflow

Five steps, a few minutes

01
Import inspection results
02
Auto-match to balloons
03
Pick report template
04
Calculate Cpk / SPC
05
Export Excel / PDF

Specifications

PAS Report at a glance

Formats, standards and systems supported out of the box. Additional machine languages and customer report templates are added on request.

AS9102 Forms 1/2/3ExcelPDFCAMIOPC-DMISDMISRenishaw EquatorScanner exports

Result sources: CAMIO, PC-DMIS, DMIS, Calypso, Renishaw Equator, scanner exports, Excel, manual entry
Report types: Dimensional, AS9102 FAI Forms 1-3, Min/Max, SPC / Cpk, batch (lot), COC
Customer templates: Elbit, IAI, Rafael, Taas, Mabat, Malam and custom Excel templates
Statistics: Cp, Cpk, Pp, Ppk, mean, sigma, UCL / LCL, trend and histogram
Batch handling: Sequential part entry, multi-cavity, sampling plans, out-of-tolerance flags
Output: Excel (.xlsx), PDF, digital signature fields, revision-controlled file naming

In the software
